0 引言

边界元法(BEM)是一种有效的工程数值计算方法，具有降维、精度高、灵活和速度快等特点.但因计算过程中形成的线性矩阵方程组的系数矩阵是非对称型满阵，边界元法对大规模的工程问题并不适用.基于BEM的上述问题，很多学者对其进行了深入的研究.文献[1]提出了快速多极展开法(FMM)，此算法是一种快速求解积分方程的算法.之后，文献[2]将FMM广义极小残余法(GMRES)结合边界积分方程，得到快速多极边界元(FM-BEM)，此方法使计算量和存储量降低到O(N)，在很大程度上提高了计算效率，被广泛应用到各个领域.文献[3]将快速多极展开技术用于高阶边界元法，降低了计算量和存储量.文献[4-5]对三维弹塑性摩擦接触多极边界元法进行了研究.并对三维轧制过程，建立了点面摩擦接触模型.近几年来，FM-BEM的应用更加广泛.文献[6]将有限元和FMM-BEM结合，来分析结构声学问题.文献[7]研究了FMM-BEM中基础Laplace方程非负解的存在性.

多极展开法^[8]是一种近似方法，展开的阶数越多就越接近真实值.在实际中展开的阶数是有限的，也就是存在项数的截断.误差的估计方法有多种，如文献[9]提出了一种新的估计技巧.而本文依据勒让德函数的相关性质，对三维位势及位势梯度Legendre级数基本解展开的截断误差进行了推导，得出级数展开到p项时的误差估计式，从而得到控制精度的方法.

1 三维位势问题的边界积分方程

设有限域为Ω，其表面边界为Γ.已知位势表面为Γ₁，已知位势梯度表面为Γ₂，且Γ=Γ₁+Γ₂，则可得Poisson方程的边界积分方程为

$ {c^i}{u^i}\left( x \right) + \int_\mathit{\Gamma } {{q^ * }\left( {x,y} \right)u\left( y \right){\rm{d}}\mathit{\Gamma }} = \int_\mathit{\Gamma } {{u^ * }\left( {x,y} \right)q\left( y \right){\rm{d}}\mathit{\Gamma }} , $

(1)

其中：x为源点；y为边界Γ上的任意一点；cⁱ为边界形状系数；式中所用到的基本解为u^*(x, y)，

$ {u^ * }\left( {x,y} \right) = \frac{1}{{4{\rm{ \mathsf{ π} }}\left| {x - y} \right|}} = \frac{1}{{4{\rm{ \mathsf{ π} }}R}};{q^ * }\left( {x,y} \right) = \frac{{\partial {u^ * }\left( {x,y} \right)}}{{\partial n}}, $

(2)

其中：q^*(x, y)是u^*(x, y)在y点处的外法线方向的导数；R为观测点和源点间的距离；n为边界Γ的外法矢.

位势基本解是1/R的函数.为适合多极展开法，将梯度表示为

$ {q^ * }\left( {x,y} \right) = - \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left[ {{\partial _1}\left( {\frac{1}{R}} \right){n_1} + {\partial _2}\left( {\frac{1}{R}} \right){n_2} + {\partial _3}\left( {\frac{1}{R}} \right){n_3}} \right] = - \frac{1}{{4{\rm{ \mathsf{ π} }}}}{\partial _m}\left( {\frac{1}{R}{n_m}} \right), $

(3)

其中：m=1、2、3；${{\partial }_{m}}$表示关于x_m的偏导数.

2 位势及位势梯度Legendre级数基本解截断误差

Legendre级数多极展开法是对位势问题基本解中的核函数1/R进行级数展开.其近似程度和展开的项数密切相关，展开的项数越多，就越接近真实值.但展开的项数过多，只是增加计算的时间，对提高精度影响不大，所以展开项数一般截断到某一项p，下面对多极展开中的截断误差进行分析.

2.1 位势基本解截断误差

设O为坐标原点, X(r, θ, φ)为场点, X_i(ρ_i, α_i, β_i)为源点，两点的相对距离为r/ρ_i，两点距离为

$ R = \left\| {X - {X_i}} \right\| = \sqrt {\rho _i^2 + {r^2} - 2{\rho _i}r\cos \gamma } , $

则根据Legendre多项式的母函数得到$\frac{1}{R}=\sum\limits_{n=0}^{\infty }{\frac{\rho _{i}^{2}}{{{r}^{n+1}}}{{P}_{n}}}$ (cos γ).其中，γ为OX_i和OX之间的夹角，且满足

$ \cos\gamma = \cos\theta \cos{\alpha _i} + \sin \theta \sin {\alpha _i}\cos \left( {\varphi - {\beta _i}} \right). $

定理1  在极坐标中场点和源点的距离为R，则基本解基于Legendre级数展开的截断误差为${E_p} < \frac{1}{{4{\rm{\pi }}a}}{\left( {\frac{1}{2}} \right)^{p + 1}}\frac{1}{{\sqrt {2p + 3} }}$，其中a表示点集的半径.

证明  由公式(2)，可得

$ \begin{array}{l} {E_p} = \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\frac{1}{R} - {{\left( {\frac{1}{R}} \right)}_p}} \right| = \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\sum\limits_{n = 0}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}{P_n}\left( {\cos \gamma } \right)} - \sum\limits_{n = 0}^p {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}{P_n}\left( {\cos \gamma } \right)} } \right| = \\ \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}{P_n}\left( {\cos \gamma } \right)} } \right| \le \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}} } \right|\left| {{P_n}\left( {\cos \gamma } \right)} \right|, \end{array} $

根据Legendre函数的正交性^[10]可得${{P}_{n}}\left( x \right)\le \sqrt{\frac{1}{2n+1}}$，则

$ \begin{array}{l} {E_p} \le \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}} } \right|\sqrt {\frac{1}{{2\left( {n + 1} \right) + 1}}} \le \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}} } \right|\frac{1}{{\sqrt {2p + 3} }} \le \\ \frac{1}{{4{\rm{ \mathsf{ π} }}}}\frac{1}{r}\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^n}}}\frac{1}{{\sqrt {2p + 3} }}} \le \frac{1}{{4{\rm{ \mathsf{ π} }}}}\frac{1}{{r - \rho }}{\left( {\frac{\rho }{r}} \right)^{p + 1}}\frac{1}{{\sqrt {2p + 3} }}. \end{array} $

结合远近场划分准则^[11], r大于点集半径a的2倍，ρ小于点集的半径a.min(r-ρ)>a，max($\frac{1}{r-\rho }$) < $\frac{1}{a}$，相对距离$\frac{r}{\rho }>2$，则$\rm{max}\left( \frac{r}{\rho } \right) < \frac{1}{2}$，可得${E_p} < \frac{1}{{4{\rm{\pi }}a}}{\left( {\frac{1}{2}} \right)^{p + 1}}\frac{1}{{\sqrt {2p + 3} }}$.

2.2 位势梯度基本解截断误差

定理2   若球坐标系下源点为X_i(ρ_i, α_i, β_i)，场点为X(r, θ, φ)，且满足cos ν=cos θcos α+sin θ·sin αcos(φ-β)，那么

$ \left| {\frac{{\cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right) - \sin \theta \cos \alpha }}{{\sqrt {1 - {{\cos }^2}\nu } }}} \right| \le 1. $

(4)

证明   要证式(4)，即证[cos θsin αcos(φ-β)-sin θcos α]²≤1-cos² ν.由夹角间的关系得:

$ \begin{array}{l} {\cos ^2}\nu = {\left[ {\cos \theta \cos \alpha + \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right)} \right]^2} = {\cos ^2}\theta {\cos ^2}\alpha + {\sin ^2}\theta {\sin ^2}\alpha {\cos ^2}\left( {\varphi - \beta } \right) + \\ 2\cos \theta \cos \alpha \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right), \end{array} $

$ \begin{array}{l} {\left[ {\cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right) - \sin \theta \cos \alpha } \right]^2} = {\cos ^2}\theta {\sin ^2}\alpha {\cos ^2}\left( {\varphi - \beta } \right) + {\sin ^2}\theta {\cos ^2}\alpha - \\ 2\sin \theta \cos \alpha \cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right). \end{array} $

则有[cos θsin αcos(φ-β)-sin θcos α]²+cos² ν=cos² α+sin² α cos²(φ-β)≤1.

定理3  若球坐标系下源点为X_i(ρ_i, α_i, β_i)，场点为X(r, θ, φ)，且满足cosν=cosθcosα+sinθ·sinαcos(φ-β)，那么

$ \left| {\frac{{\sin \alpha \sin \left( {\varphi - \beta } \right)}}{{\sqrt {1 - {{\cos }^2}\nu } }}} \right| \le 1. $

(5)

证明  要证式(5)，即证1-cos² ν-sin² αsin²(φ-β)≥0.

由夹角间的关系得

$ \begin{array}{l} 1 - {\cos ^2}\nu - {\sin ^2}\alpha {\sin ^2}\left( {\varphi - \beta } \right) =\\ 1 - {\cos ^2}\theta {\cos ^2}\alpha - {\sin ^2}\theta {\sin ^2}\alpha {\cos ^2}\left( {\varphi - \beta } \right) - {\sin ^2}\theta {\sin ^2}\alpha {\sin ^2}\left( {\varphi - \beta } \right) - \\ {\cos ^2}\theta {\sin ^2}\alpha {\sin ^2}\left( {\varphi - \beta } \right) -\\ 2\cos \theta \cos \alpha \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right) = 1 - {\cos ^2}\theta {\cos ^2}\alpha - {\sin ^2}\theta {\sin ^2}\alpha - \\ {\cos ^2}\theta {\sin ^2}\alpha {\sin ^2}\left( {\varphi - \beta } \right) - 2\cos \theta \cos \alpha \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right) = \left( {{{\cos }^2}\theta + {{\sin }^2}\theta } \right) - \\ {\cos ^2}\theta {\cos ^2}\alpha - {\sin ^2}\theta {\sin ^2}\alpha - {\cos ^2}\theta {\sin ^2}\alpha {\sin ^2}\left( {\varphi - \beta } \right) - 2\cos \theta \cos \alpha \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right) = \\ {\cos ^2}\theta {\sin ^2}\alpha + {\sin ^2}\theta {\cos ^2}\alpha - {\cos ^2}\theta {\sin ^2}\alpha {\sin ^2}\left( {\varphi - \beta } \right) - 2\cos \theta \cos \alpha \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right) = \\ {\cos ^2}\theta {\sin ^2}\alpha {\cos ^2}\left( {\varphi - \beta } \right) + {\sin ^2}\theta {\cos ^2}\alpha - 2\cos \theta \cos \alpha \sin \theta \sin \alpha \cos \left( {\varphi - \beta } \right) = \\ {\left( {\cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right) - \sin \theta \cos \alpha } \right)^2} \ge 0. \end{array} $

定理4  球坐标系下，位势梯度的各个分量的截断误差分别为ΔE_pr、ΔE_pθ、ΔE_pφ，则

$ \left\| {\Delta {E_p}} \right\| = \sqrt {{{\left( {\Delta {E_{pr}}} \right)}^2} + {{\left( {\Delta {E_{p\theta }}} \right)}^2} + {{\left( {\Delta {E_{p\theta }}} \right)}^2}} \le \frac{1}{{4{\rm{ \mathsf{ π} }}{a^2}}}\sqrt {\frac{{\left( {3p + 4} \right)\left( {p + 2} \right)}}{{2p + 3}}} {\left( {\frac{1}{2}} \right)^{p + 1}}. $

证明   设位势梯度的截断误差为ΔE_p，则

$ \Delta {E_p} = \frac{1}{{4{\rm{ \mathsf{ π} }}}}\frac{\partial }{{\partial n}}\left| {\frac{1}{R} - {{\left( {\frac{1}{R}} \right)}_p}} \right| = \frac{{\partial {E_p}}}{{\partial n}} = \frac{1}{{4{\rm{ \mathsf{ π} }}}}\frac{\partial }{{\partial n}}\left[ {\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}{P_n}\left( {\cos \nu } \right)} } \right], $

令$U=\frac{{{\rho }^{n}}}{{{r}^{n+1}}}{{P}_{n}}$ (cos ν)，则U的梯度为grad(U)=(ν_r, ν_θ, ν_φ)=($\frac{\partial U}{\partial r}, \frac{\partial U}{r\partial \theta }, \frac{\partial U}{r~\rm{sin}~\theta \partial \varphi }$)，整理可得${{\nu }_{r}}=-\left( n+1 \right)\frac{{{\rho }^{n}}}{{{r}^{n+2}}}{{P}_{n}}$(cos ν).

由Legendre函数的微商表示与连带的Legendre函数的微商间的关系可得^[10]：

$ {\nu _\theta } = \frac{{{\rho ^n}}}{{{r^{n + 2}}}}\left[ {\cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right) - \sin \theta \cos \alpha } \right]P_n^1\left( {\cos \nu } \right){\left( {1 - {{\cos }^2}\nu } \right)^{ - 1/2}}, $

$ {\nu _\varphi } = \frac{{{\rho ^n}}}{{{r^{n + 1}}}}\left[ {\frac{{ - \sin \theta \sin \alpha \sin \left( {\varphi - \beta } \right)}}{{\sin \theta }}} \right]P_n^1\left( {\cos \nu } \right){\left( {1 - {{\cos }^2}\nu } \right)^{ - 1/2}}. $

根据Legendre函数的正交性及远近场划分准则可得^[11]

$ \begin{array}{l} \left| {\Delta {E_{pr}}} \right| = \frac{1}{{4{\rm{ \mathsf{ π} }}}}\frac{\partial }{{\partial r}}\left| {\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}{P_n}\left( {\cos \nu } \right)} } \right| = \frac{1}{{4{\rm{ \mathsf{ π} }}}}\frac{\partial }{{\partial r}}\left( {\frac{1}{{r - \rho }}{{\left( {\frac{\rho }{r}} \right)}^{p + 1}}} \right)\left| {{P_n}\left( {\cos \nu } \right)} \right| = \\ \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left| {\left[ { - \frac{1}{{{{\left( {r - \rho } \right)}^2}}}{{\left( {\frac{\rho }{r}} \right)}^{p + 1}} - \frac{1}{{r - \rho }}\left( {p + 1} \right)\frac{{{\rho ^{p + 1}}}}{{{r^{p + 2}}}}} \right]} \right|\left| {{P_n}\left( {\cos \nu } \right)} \right| \le \\ \frac{1}{{4{\rm{ \mathsf{ π} }}}}\left[ {\frac{1}{{{a^2}}}{{\left( {\frac{\rho }{r}} \right)}^{p + 1}} + \frac{{p + 1}}{{{a^2}}}{{\left( {\frac{\rho }{r}} \right)}^{p + 1}}} \right]\frac{1}{{\sqrt {2p + 3} }} \le \frac{1}{{4{\rm{ \mathsf{ π} }}{a^2}}}\frac{{p + 2}}{{\sqrt {2p + 3} }}{\left( {\frac{1}{2}} \right)^{p + 1}}. \end{array} $

结合定理2，可得

$ \begin{array}{l} \left| {\Delta {E_{p\theta }}} \right| = \left| {\frac{1}{{4{\rm{ \mathsf{ π} }}r}}\left[ {\cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right) - \sin \theta \cos \alpha } \right]{{\left( {1 - {{\cos }^2}\nu } \right)}^{ - 1/2}}\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}P_n^1\left( {\cos \nu } \right)} } \right| = \\ \frac{1}{{4{\rm{ \mathsf{ π} }}r}}\left| {\left[ {\cos \theta \sin \alpha \cos \left( {\varphi - \beta } \right) - \sin \theta \cos \alpha } \right]{{\left( {1 - {{\cos }^2}\nu } \right)}^{ - 1/2}}} \right|\frac{1}{{r - \rho }}{\left( {\frac{\rho }{r}} \right)^{p + 1}}P_n^1\left( {\cos \nu } \right) \le \\ \frac{1}{{4{\rm{ \mathsf{ π} }}a}}\frac{1}{a}{\left( {\frac{\rho }{r}} \right)^{p + 1}}\sqrt {\frac{{\left( {p + 2} \right)!}}{{\left( {2p + 3} \right)p!}}} \le \frac{1}{{4{\rm{ \mathsf{ π} }}{a^2}}}\sqrt {\frac{{\left( {p + 1} \right)\left( {p + 2} \right)}}{{2p + 3}}} {\left( {\frac{1}{2}} \right)^{p + 1}}. \end{array} $

结合定理3，可得

$ \begin{array}{l} \left| {\Delta {E_{p\varphi }}} \right| = \left| {\frac{1}{{4{\rm{ \mathsf{ π} }}r}}\sin \alpha \sin \left( {\varphi - \beta } \right){{\left( {1 - {{\cos }^2}\nu } \right)}^{ - 1/2}}\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}P_n^1\left( {\cos \nu } \right)} } \right| = \\ \frac{1}{{4{\rm{ \mathsf{ π} }}r}}\left| {\sin \alpha \sin \left( {\varphi - \beta } \right){{\left( {1 - {{\cos }^2}\nu } \right)}^{ - 1/2}}} \right|\sum\limits_{n = p + 1}^\infty {\frac{{{\rho ^n}}}{{{r^{n + 1}}}}P_n^1\left( {\cos \nu } \right)} \le \\ \frac{1}{{4{\rm{ \mathsf{ π} }}a}}\frac{1}{a}{\left( {\frac{\rho }{r}} \right)^{p + 1}}\sqrt {\frac{{\left( {p + 1} \right)\left( {p + 2} \right)}}{{2p + 3}}} \le \frac{1}{{4{\rm{ \mathsf{ π} }}{a^2}}}\sqrt {\frac{{\left( {p + 1} \right)\left( {p + 2} \right)}}{{2p + 3}}} {\left( {\frac{1}{2}} \right)^{p + 1}}. \end{array} $

综上可得$\|\Delta {{E}_{p}}\|\le \frac{1}{{4{\rm{\pi }}{a^2}}}\sqrt {\frac{{\left( {3p + 4} \right)\left( {p + 2} \right)}}{{2p + 3}}} {\left( {\frac{1}{2}} \right)^{p + 1}}$.

2.3 位势及位势梯度截断误差分析

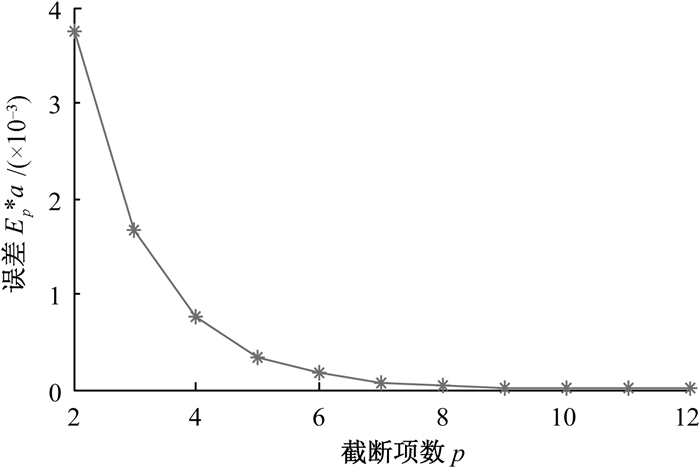

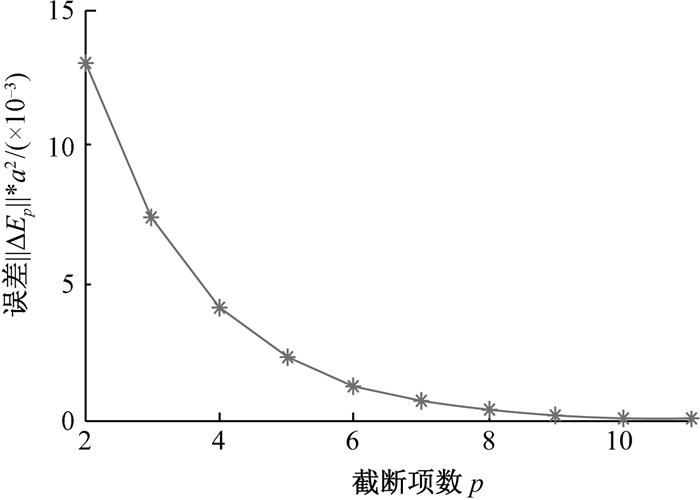

由定理1可得三维位势基本解的截断误差式，截断项数p取不同的值时，将E_p*a看作一个整体，其截断误差结果如图 1所示.由定理4可得位势梯度的截断误差.截断项数p取不同的值时，将‖ΔE_p‖*a²看作一个整体，其截断误差结果如图 2所示.

从图 1和图 2中可以看出，当相对距离r/ρ一定时，随着截断项数p的增加，位势和位势梯度的截断误差都在逐渐缩小.

因此，截断项数p对多极展开的计算量、存储量以及求解精度具有重要的影响，适当地选取p值在实际工程计算中尤为重要.由文献[12]知，为了获得一个较高的精度，截断项数p应与log_1/2(ε)同阶.对于给定的精度要求，就可以用式p=[-log₂ε]+1([]代表取整), 给出其所要求的截断项数.

3 结论
